SD Card Repair: How to Fix Corrupted SD Card

Are you having trouble accessing files on an SD card because it’s corrupted or damaged? We put together this guide with proven ways to fix a corrupted SD card, whether the problem is a messed-up file system, a missing partition, or errors that prevent your device from reading the card properly. Some repair methods are safe and won’t touch your data, while others are more radical and involve formatting or restructuring the card. If the files on your memory card matter to you, we’ll walk you through how to recover them first before trying any risky fixes.

Common Signs Indicating SD Card Corruption/Damage

It’s possible for a perfectly working SD card to fail without warning, but most SD cards first show certain tell-tale signs of corruption/damage before they stop working. If you learn to recognize these signs, you’ll be able to back up your data in time and fix the underlying problem while you still can.

Signs of SD card corruption/damage:

If any of these symptoms sound familiar, you need to make a quick but important decision right now by answering the following question: How valuable is the data on that card? Most of the fixes we cover below carry some risk to your files, from minor to total wipeout. In short, most repair methods involve altering the card’s structure, which could permanently overwrite your files. So if there’s anything on that memory card you can’t afford to lose, your first move before uncorrupting an SD card should be recovering that data. We’ll show you exactly how to do that in the next section.

Use SD Card Data Recovery Software to Recover Files

To get your data back, you can use SD card data recovery software like Disk Drill.

Disk Drill is a reliable data recovery solution that supports all types of SD cards, including SD, SD High Capacity (SDHC), and SD Extended Capacity (SDXC). It can quickly recover any files (pictures, videos, audio, documents, etc.), and you can preview recoverable files before recovery.

FAM!! I DELETED SOME FILES BY ACCIDENT ON MY MEMORY CARD!! LITERALLY 15MINS WORTH OF FOOTAGE! I TRIED MANY RECOVER PROGRAMS ALLLLLL NIGHT! PROBABLY SPEND $300 ON SCAM ONES! FINALLY GOT ONE! BIG TIP FOR ANY YOUTUBERS WHO NEED THIS IN THE FUTURE! USE DISK DRILL!

— Cash ✌🏾HYPE (@CashNastyGaming) June 8, 2020

The free version of Disk Drill lets you recover up to 100 MB of data, which is enough to test the software, restore your most important files, and in some cases even cover the entire data loss episode. It also includes several handy data protection and backup features to help safeguard your SD card against future data loss. Importantly, Disk Drill is effective in recovering files from a damaged SD card, provided the card is still recognized in Disk Management without the “No media” label.

To recover files from an SD card using data recovery software:

1. Download and install Disk Drill. The app works on both Windows and macOS. Installation takes about a minute, and you don’t need to restart your computer afterward.


   Data recovery for free
   Your Companion for Deleted Files Recovery

   Free Download
2. Connect the SD card to your computer and launch Disk Drill (in either order since Disk Drill refreshes its device list automatically). Use an external card reader if your computer doesn’t have a built-in SD card slot. The card doesn’t need to appear in File Explorer. As long as it’s detected at the system level (visible in Disk Management), Disk Drill will be able to recover it. If it doesn’t show up at all, try a different USB port or reader first.
3. Select the SD card and click Search for lost data. If you’re recovering from a camera memory card (or its byte-to-byte copy, which is a complete sector-by-sector image of the card, and we explain how to create it below), you’ll also see an Advanced Camera Recovery option. This scan mode was introduced in Disk Drill 6 and is specifically built to reconstruct fragmented video files from cameras like GoPro, DJI, Canon, and others. For camera SD cards, it’s worth running this mode alongside the standard scan for the best results.

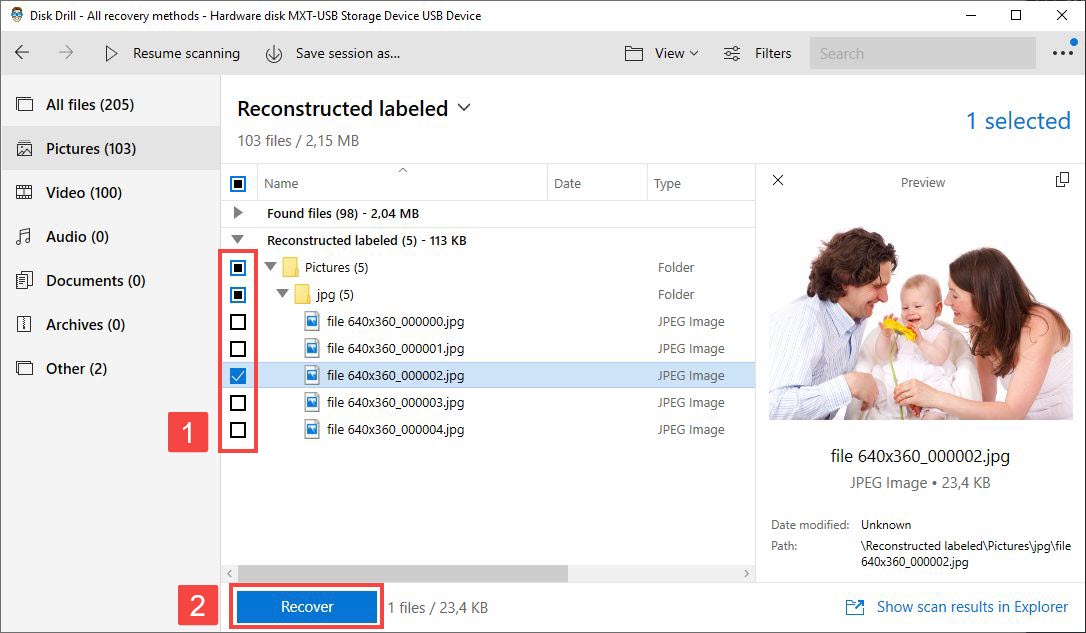

4. Check the files you want to recover. You can filter by file type (photos, videos, documents, etc.) to find what you need faster, and Disk Drill even lets you preview files so that you can check if you’ve selected correctly and if they’re not corrupted.

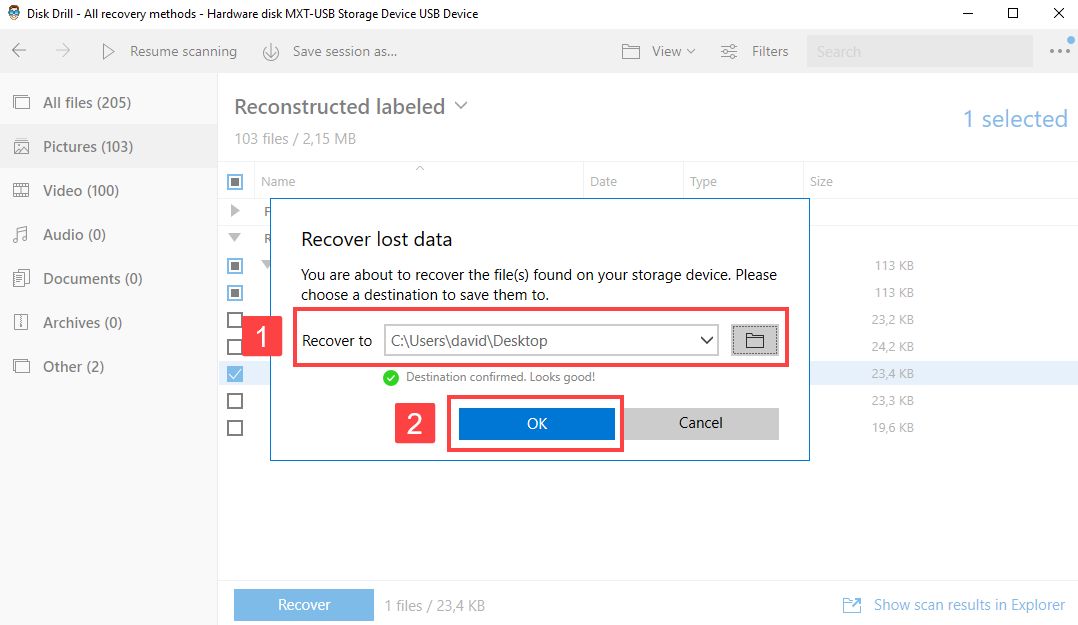

5. Click the Recover button at the bottom and specify the recovery destination, then click OK to begin recovering your files. Pick a different drive than the SD card itself. Saving recovered files back to the same corrupted card can overwrite data you haven’t recovered yet.

Since you’re working with a corrupted memory card, every read operation puts additional stress on it. If the card fails mid-scan, you could lose everything. For this reason, we strongly recommend creating a byte-to-byte backup of the SD card first and then scanning the backup image instead. This way, you’ll have a complete copy of the raw data, and the actual recovery process becomes much safer because you’re no longer depending on the damaged card to stay alive throughout the scan.

Ways to Fix Corrupted or Damaged SD Card

Now that we’ve covered data recovery, let’s move on to actually fixing the problem. Below are 10 methods for repairing a corrupted SD card. They’re arranged from simple checks to more advanced fixes, so if your memory card still isn’t working properly, just work through them step by step. We’ll explain what each method does and when it makes sense to use it.

Way 1. Check SD Card for Physical Damage

The first step in repairing a corrupted SD card is to inspect it for physical damage. SD cards are small, delicate devices that can suffer from wear and tear, mishandling, or environmental exposure, all of which can render them unreadable or unreliable.

Here are the key physical checks to perform on your SD card:

• Look for cracks or chips in the plastic casing: The outer shell of an SD card protects its internal components, and any visible cracks – whether from dropping it or stepping on it – can signal trouble. A cracked casing might expose the circuitry to dust or moisture, or worse, indicate that the internal memory chip itself is damaged.
• Check the metal contacts for scratches, corrosion, or bends: The gold-colored contacts on the SD card allow it to communicate with computers, cameras, and other devices. Scratches might come from rough insertion, while corrosion (greenish or white residue) could stem from water exposure – think a card left in a damp camera bag. Bent contacts, often from forcing the card into a slot, can also disrupt connectivity.
• Inspect for signs of water or heat damage: SD cards don’t fare well in extreme conditions. Submersion in water or prolonged heat (like being left in a hot car) can fry the electronics or warp the card. Look for discoloration, a warped shape, or a musty smell as clues.
• Examine the lock switch (if present): Many SD cards have a tiny sliding switch to lock or unlock write protection. If it’s stuck, broken off, or loose, the card might appear corrupted because it’s stuck in read-only mode. Try sliding it gently with your fingernail – if it doesn’t move or feels detached, this could be the issue.

If any of these checks reveal damage, stop troubleshooting and reach out to a recovery center. Data recovery professionals have the experience and equipment to not just repair corrupted SD cards but also to recover lost data from physically damaged SD cards, so they can save the day even when DIY fixes can’t.

Way 2. Try Different Hardware

This is by far the easiest fix you can try, which is why you should always start with it before moving on to more complex methods for repairing a corrupted SD card:

• Try a different USB port: Start by trying another USB port on your computer, as a single faulty port could be the cause.
• Get a new reader/adapter: If you’re using a laptop with a built-in SD card reader, grab a USB card reader instead and test it across several ports, ideally on more than one computer. For microSD cards, rule out a defective adapter by swapping it for another or connecting the microSD card directly via a microSD reader.
• Test the card on a different PC: If the SD card still doesn’t work, then you should test it on another device or PC to confirm whether the issue follows the card or stays with your setup.

Once you’re done testing different ports, adapters, readers, and devices, you’ll have a much better idea if the problem is with your SD card itself or simply with its connectivity or your computer’s system.

Way 3. Fix a Card by Trying the CHKDSK Command to Check for Memory Card Errors

Included in all versions of Windows is a command-line utility for checking the file system and file system metadata of a volume for logical and physical errors. This utility is called CHKDSK, and it’s actually much easier to use than most people think.

To fix a corrupted SD card using the CHKDSK command:

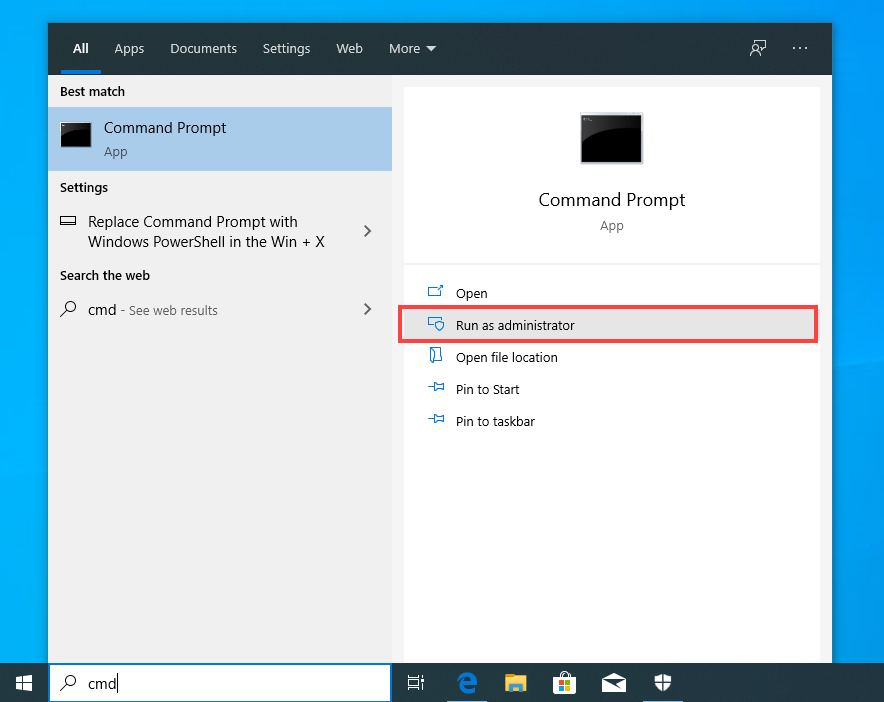

1. Press Win + X and choose Terminal (Admin).

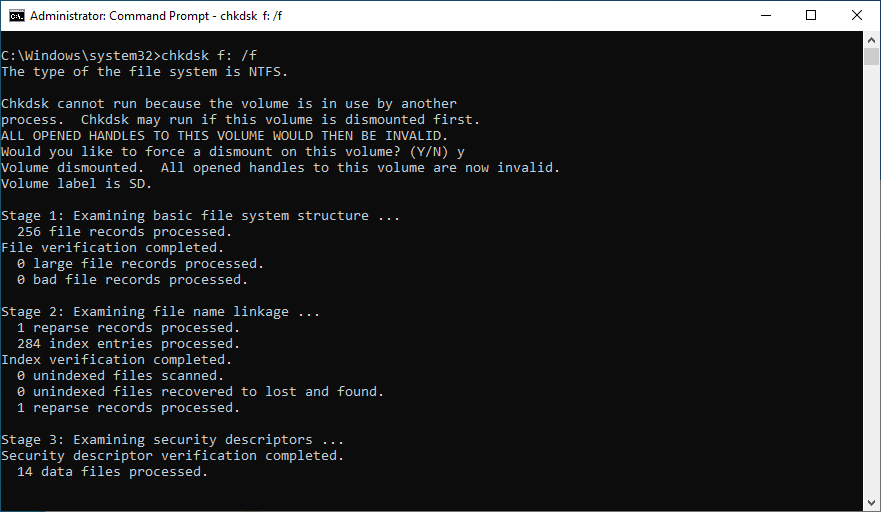

2. Enter the following command, ensuring to replace X with the letter assigned to your SD card, and press Enter: chkdsk X: /x /r. The /x parameter instructs CHKDSK to dismount the disk volume before the process begins, which is necessary for making repairs. Meanwhile, the /r parameter enables CHKDSK to locate bad sectors and recover readable information from them. This option includes the functionalities of /f, which tells CHKDSK to fix errors on the disk.
3. Wait for CHKDSK to finish. The process may take several hours, depending on the size of your SD card.

Unfortunately, CHKDSK won’t help you if you’re wondering how to fix a corrupted microSD card that doesn’t have a drive letter assigned to it. In situations like that, you need to first assign a new drive letter (as explained in the following section) and then run CHKDSK. Finally, it’s worth pointing out that CHKDSK also won’t work on a RAW SD card, since it needs a recognizable file system to operate on.

Way 4. Assign a New Drive Letter

One of the most puzzling SD card issues occurs when your card is physically connected to your computer but doesn’t appear in File Explorer. This problem frequently happens because Windows either fails to assign a drive letter to the SD card or assigns one that conflicts with another storage device. The good news is that assigning a new drive letter to the SD card is easy.

To assign a new drive letter to an SD card:

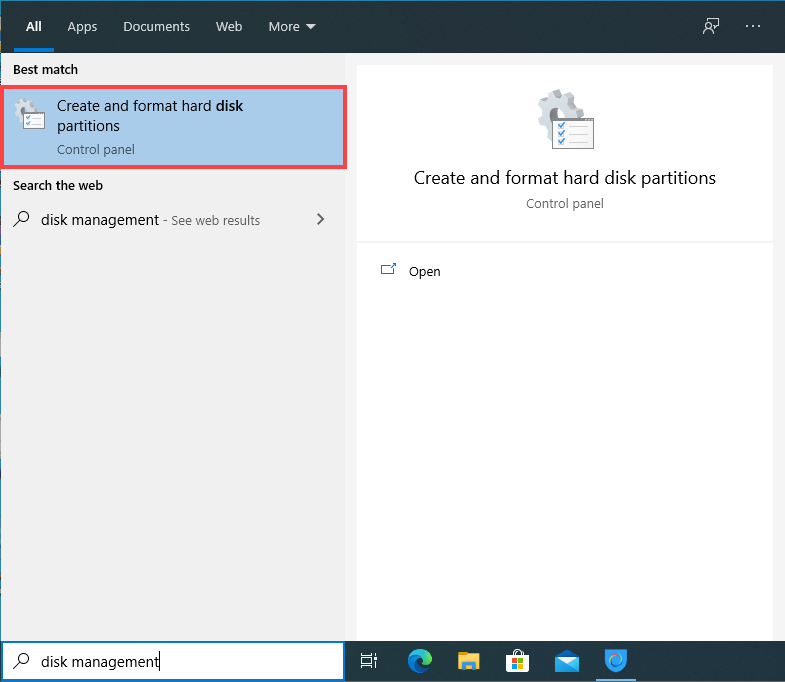

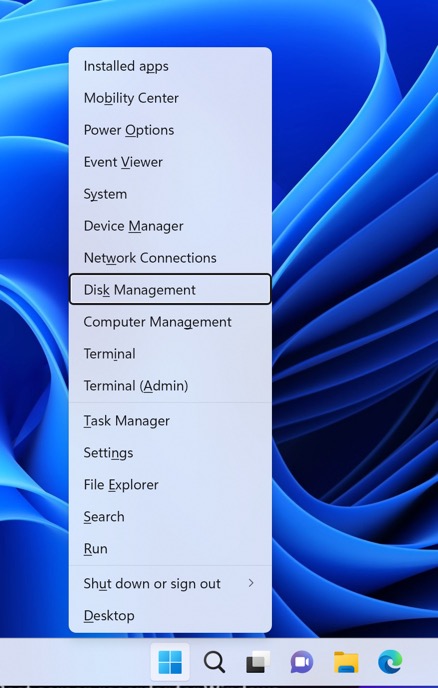

1. Press Win + X and choose Disk Management.

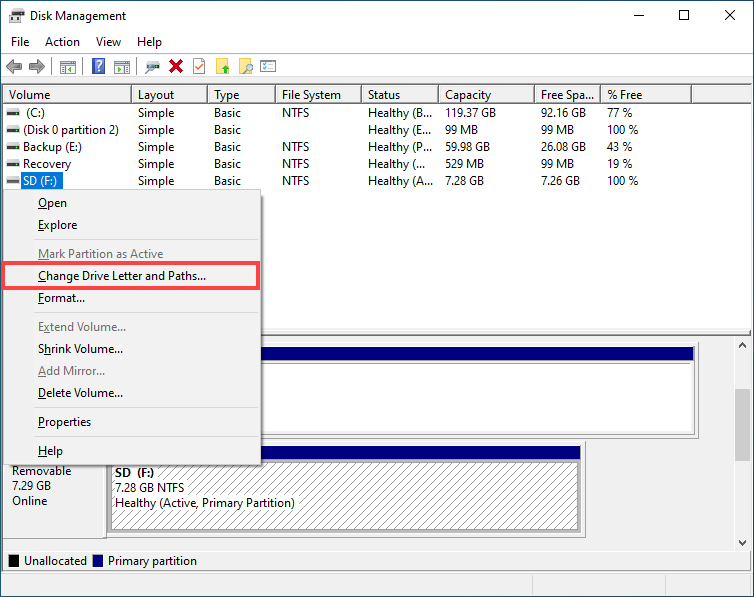

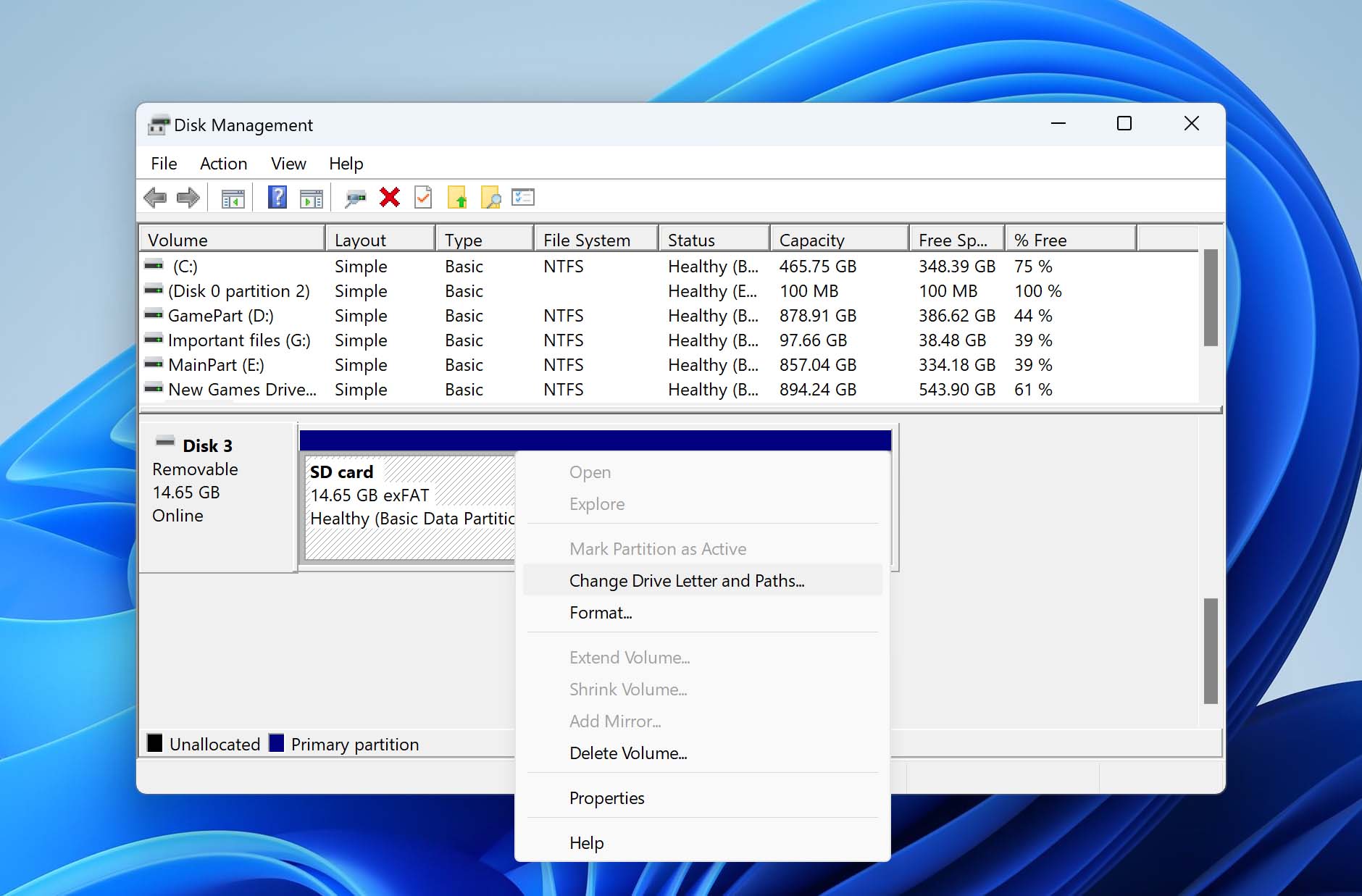

2. Right-click on your SD card and select the Change Drive Letter and Paths… option.

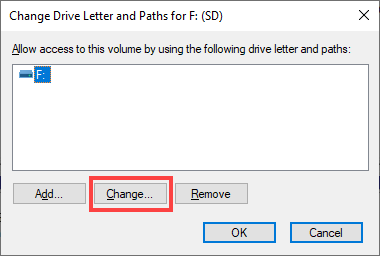

3. Click the Change… or Add… button.

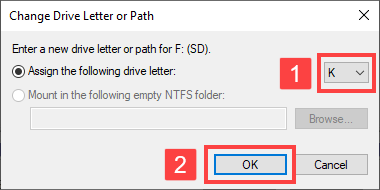

4. Select a new drive letter and click OK.
5. Click OK again to close the Change Drive Letter and Paths window.

After completing these steps, check File Explorer again – your SD card should now appear with the newly assigned letter. If you’re still experiencing issues with your SD card not showing up after trying this method, you may need to try more advanced solutions as outlined in our comprehensive guide to fixing SD cards that don’t show up.

Way 5. Reinstall SD Card Drivers

Windows automatically downloads and installs the most recent drivers through Windows Update, but not all driver updates go exactly according to plan. If you suspect that your SD card is misbehaving because of a faulty driver update, you should reinstall it manually.

To reinstall card drivers:

1. Type “device manager” in the search on the taskbar and select Device Manager.
2. Go through the available categories and look for your SD card (we found it located under Portable Devices).

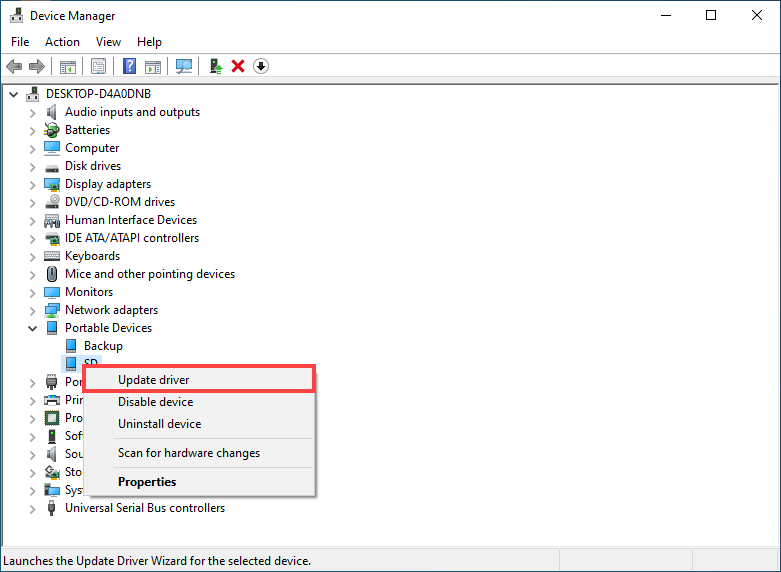

3. Right-click the SD card and select Update driver.

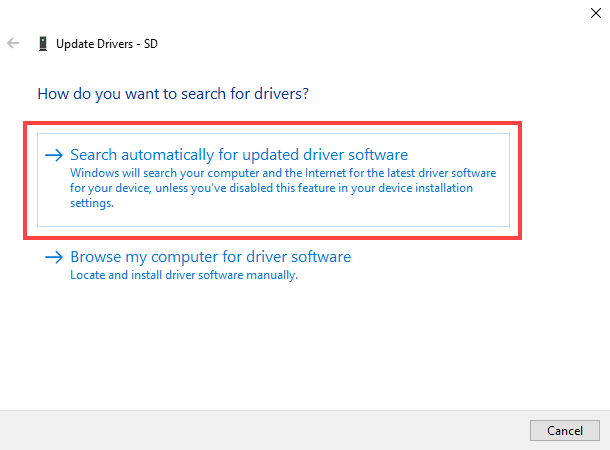

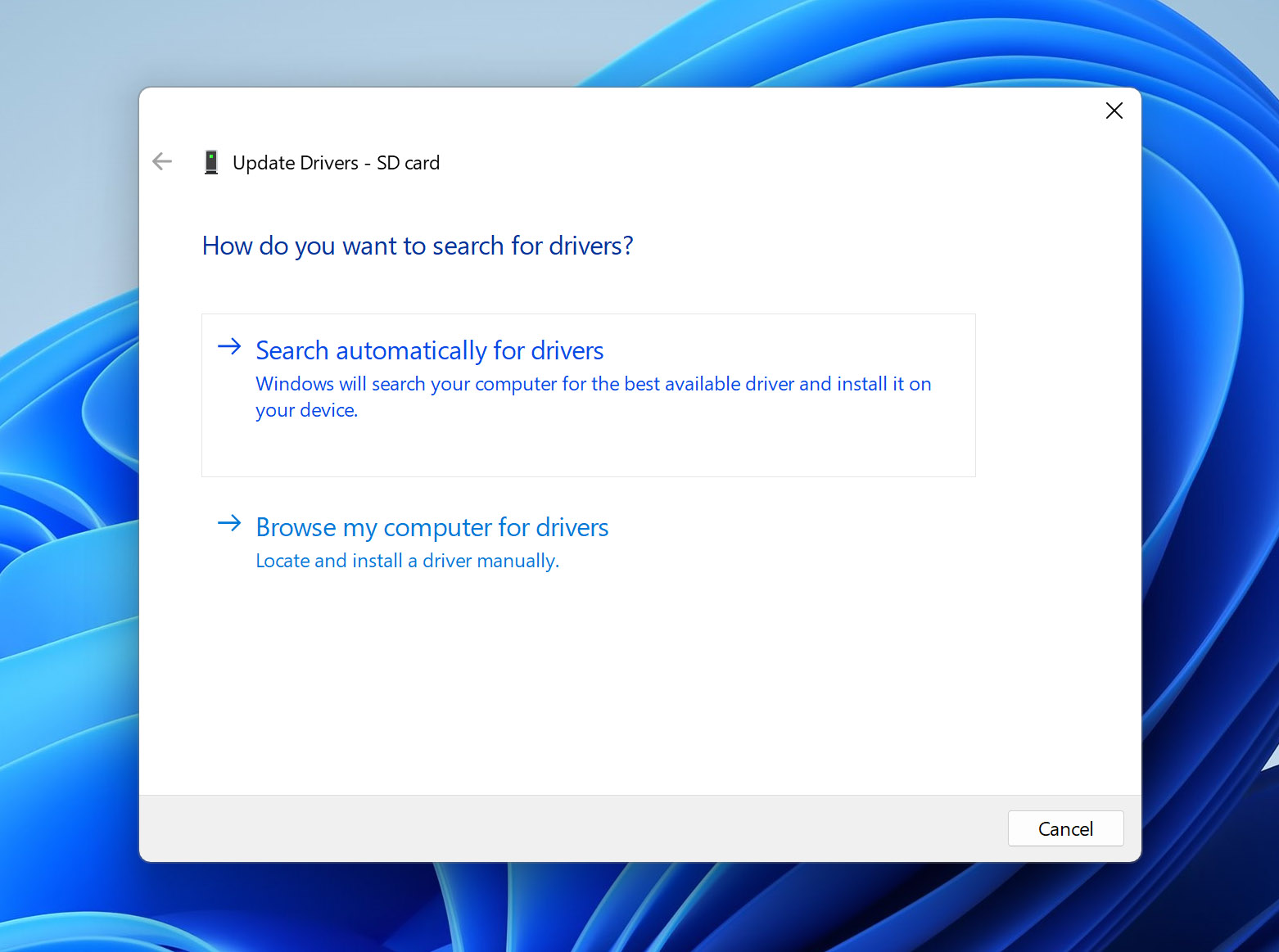

4. Select Search automatically for drivers.
5. Select Update Driver.

If Windows doesn’t automatically find a suitable driver, you can look for it on the manufacturer’s website and install it manually by selecting Browse my computer for driver software in step 4.

Way 6. Fix SD Card Using Windows Repair Tool

Included with Windows is a graphical tool capable of checking drives for file system errors. This tool is commonly referred to as Windows Repair Tool, and Windows sometimes automatically launches it when you insert a corrupted drive. That said, you can also invoke it manually and use it to scan any drive for errors.

To fix an SD card/USB drive using Windows Repair Tool:

1. Type “file explorer” in the search on the taskbar and select File Explorer.
2. Select This PC from the left panel.
3. Right-click on your SD card and select Properties.
4. Click Tools and select the Check option.
5. Click Scan and repair drive.

If you see a warning message saying that Windows can’t repair the drive while it’s in use, save any unsaved work on the SD card and choose to repair it now or on the next restart.

Way 7. Fix SD Card Without Formatting Using TestDisk

When your SD card shows as RAW, unformatted, or has missing partitions, you might still be able to rescue it without formatting using TestDisk, an open-source application designed to, among other things, recover lost partitions.

A word of caution, though. Much like CHKDSK, TestDisk works directly with partition data, and incorrect actions can complicate or even completely block future data recovery attempts. This tool also requires a decent level of technical understanding. If you have important files on the card, recover them before running TestDisk.

Do the following to fix your SD card without formatting using TestDisk:

1. Download TestDisk from its official website (CGSecurity.org). It’s a portable application that doesn’t require installation. Simply extract the ZIP file to a folder on your computer and run “testdisk_win.exe” as Administrator.
2. Select “Create” to generate a log file that records all operations (can be helpful for troubleshooting if something goes wrong), use the arrow keys to highlight your SD card (verify by checking the correct size), and press Enter.
3. TestDisk typically auto-detects the partition table type. If uncertain, accept the default selection and press Enter.
4. Select Analyse and press Enter. TestDisk will examine your SD card’s current partition structure and display what it finds.
5. Select Quick Search to scan for lost partitions. TestDisk will search through your SD card and display any partitions it discovers, including those that might be missing from the partition table.
6. Once TestDisk completes its search, it will show any partitions it found. You can highlight each partition and press P to list the files and verify if it contains your data. If your partition is marked as D (deleted), use the left/right arrow keys to change its status.
7. After confirming your partition structure is correct, select Write from the menu, press Enter, then type Y and press Enter again to confirm. This writes the corrected partition table to your SD card.

After completing these steps, safely remove your SD card, reconnect it, and check if your files are now accessible.

Way 8. Make Sure Hidden Files Are Displayed by Your Operating System

In some cases, your SD card might suddenly show that it’s empty, or only partial data might show up on it after you’ve fixed the corruption error. This happens if your data is hidden. To unhide your data and files, you would have to modify viewing settings and allow all files on your SD card to be viewed.

To show hidden files on the damaged SD card on Windows 10/11:

1. Open the Windows search bar and type File Explorer Options. Select the matching result.
2. Navigate to the View tab. Locate the Hidden files and folders section and select the Show hidden files, folders, and drives option.
3. (Optional) Uncheck the option to Hide protected operating system files (Recommended) if you also want to reveal system files that are normally hidden to prevent accidental modifications.
4. Click Apply and then OK to confirm your changes.
5. Open File Explorer, navigate to your SD card, and verify if the hidden files are now visible.

Way 9. Format to Repair a Corrupted SD Card

Formatting is the most definitive way to fix memory card problems that stem from file system damage. It won’t bring back your data, but it can bring your card back to life when softer methods have failed. In this section, we’ll look at three main scenarios where formatting is the most appropriate solution and is most likely to get a corrupted memory card working again.

Before we get into specifics: formatting erases the file allocation table, which is essentially the map your operating system uses to locate files on the card. Depending on the type of formatting, data recovery software can sometimes still retrieve files afterward, but the chances of success are hard to predict, especially on a card that’s already corrupted. So, as with the other risky methods we covered earlier, make sure you’ve dealt with data recovery before you move forward here.

Fix a RAW SD Card

If your operating system can still detect your SD card as a physical device but can’t interpret its file structure, the card may appear as a RAW device. You’ll typically see error messages like “The disk in drive is not formatted. Do you want to format it now?” when trying to access it.

A common misconception is that a RAW SD card contains no data. In reality, your files might still be physically present on the card, but the operating system simply cannot reach them because the file system is unrecognized, absent, or corrupted.

To format a RAW SD card:

1. Connect the SD card to your computer.
2. Type “Terminal” in the search box on the taskbar and select Run as administrator.
3. Type diskpart and press Enter on your keyboard.
4. Type list volume and press Enter.
5. Type select volume <the number corresponding to the RAW SD card> and press Enter.
6. Type format fs=exfat and hit Enter.

We recommend exFAT as the file system for most users. It works across platforms (Windows, Mac, Android), supports large file sizes, and handles SD cards of any capacity without the 4GB file size limit that FAT32 has. That said, if you need compatibility with older devices (like certain cameras or car stereos that only recognize FAT32), you can use format fs=fat32 instead.

Create a Partition on the SD Card

Sometimes an SD card might show up as corrupted or not show up at all because its storage space has become unallocated. This means no partitions exist on the card and it’s impossible for the operating system to recognize or use it.

When your SD card appears as unallocated in Disk Management, the first step should always be to recover any important data from the card, as creating a new partition will erase all existing information.

After safely recovering your data, the next step is to create a new partition and format the SD card to a suitable file system (usually exFAT for the best compatibility). By creating and formatting a fresh partition, you’re giving the operating system a clean, recognizable structure to work with.

You can create a new partition in just a few steps:

1. Connect the SD card to your computer.
2. Press Win + X and launch the Disk Management tool.

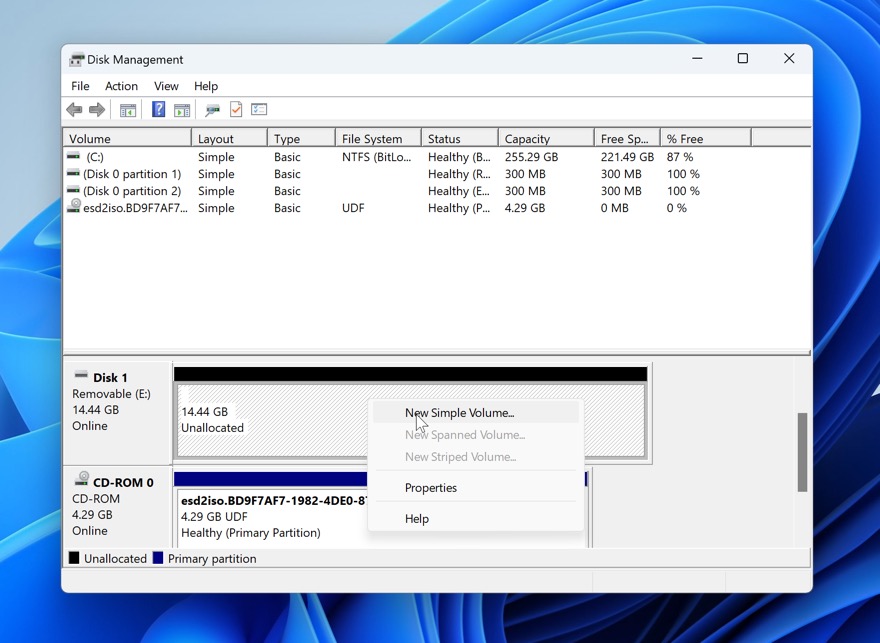

3. Right-click the SD card and choose to create a New Simple Volume.

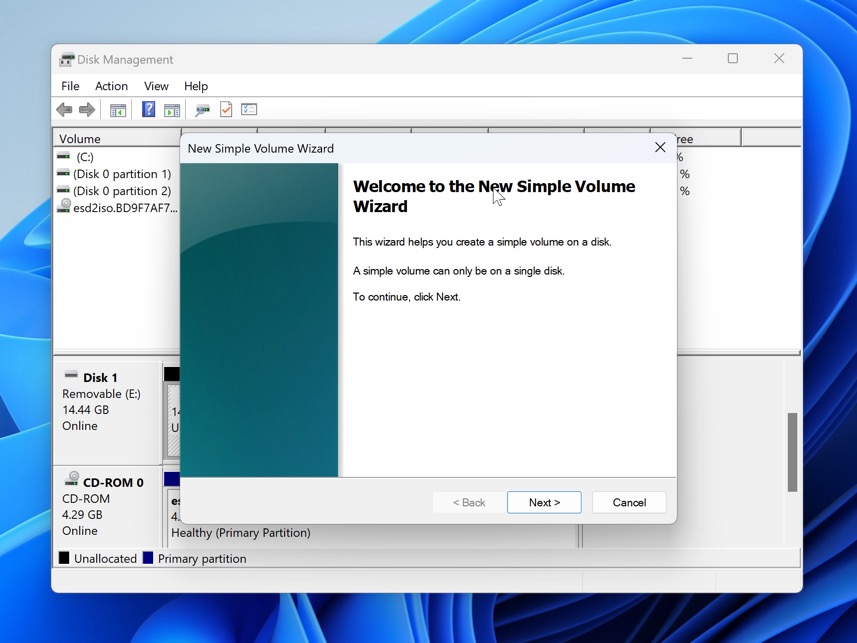

4. Follow the step-by-step partition creation wizard.
5. Your SD card should now be recognized and ready to use.

Apply Low-Level Formatting

The two scenarios above cover the most common situations. But there are plenty of other problems that formatting can solve, including damaged file system structure, corrupted partition table, incorrect capacity where an SD card shows the wrong size, bad sectors, and persistent read/write errors.

For these cases, we’ll walk through two approaches. The first is a straightforward format using built-in Windows tools. The second is a deeper, low-level format for when the basic approach doesn’t cut it.

Windows includes a built-in formatting tool that works well for most SD card issues. Here’s how to use it:

1. Open File Explorer and navigate to This PC.
2. Right-click on your SD card and select the Format… option.
3. Select the desired File system. You can leave the allocation unit size as it is. The difference between Quick Format and Full Format is that Quick Format simply rewrites the file system declaration, while Full Format overwrites every sector on the device with zeros and scans for bad sectors. For fixing corruption, it’s better to leave the Quick Format option unchecked.

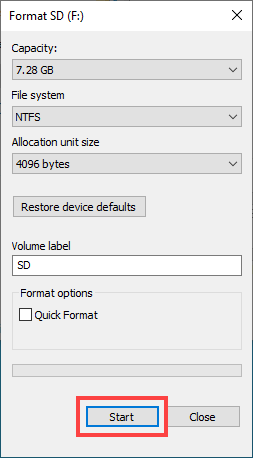

4. Click Start to format the SD card.

If standard formatting fails or doesn’t fix the issue, your SD card may need a low-level format. Unlike regular formatting, which primarily rewrites the file system, low-level formatting resets the card at a deeper level by completely wiping all data structures, reestablishing track and sector markers, and identifying and marking truly bad sectors (making them unavailable for future read/write operations).

For this level of formatting, specialized tools are required. One reliable option is HDD LLF Low Level Format Tool (it supports SD cards despite its name), and you can download it from HDDGURU.COM. Once you have it downloaded, follow these steps:

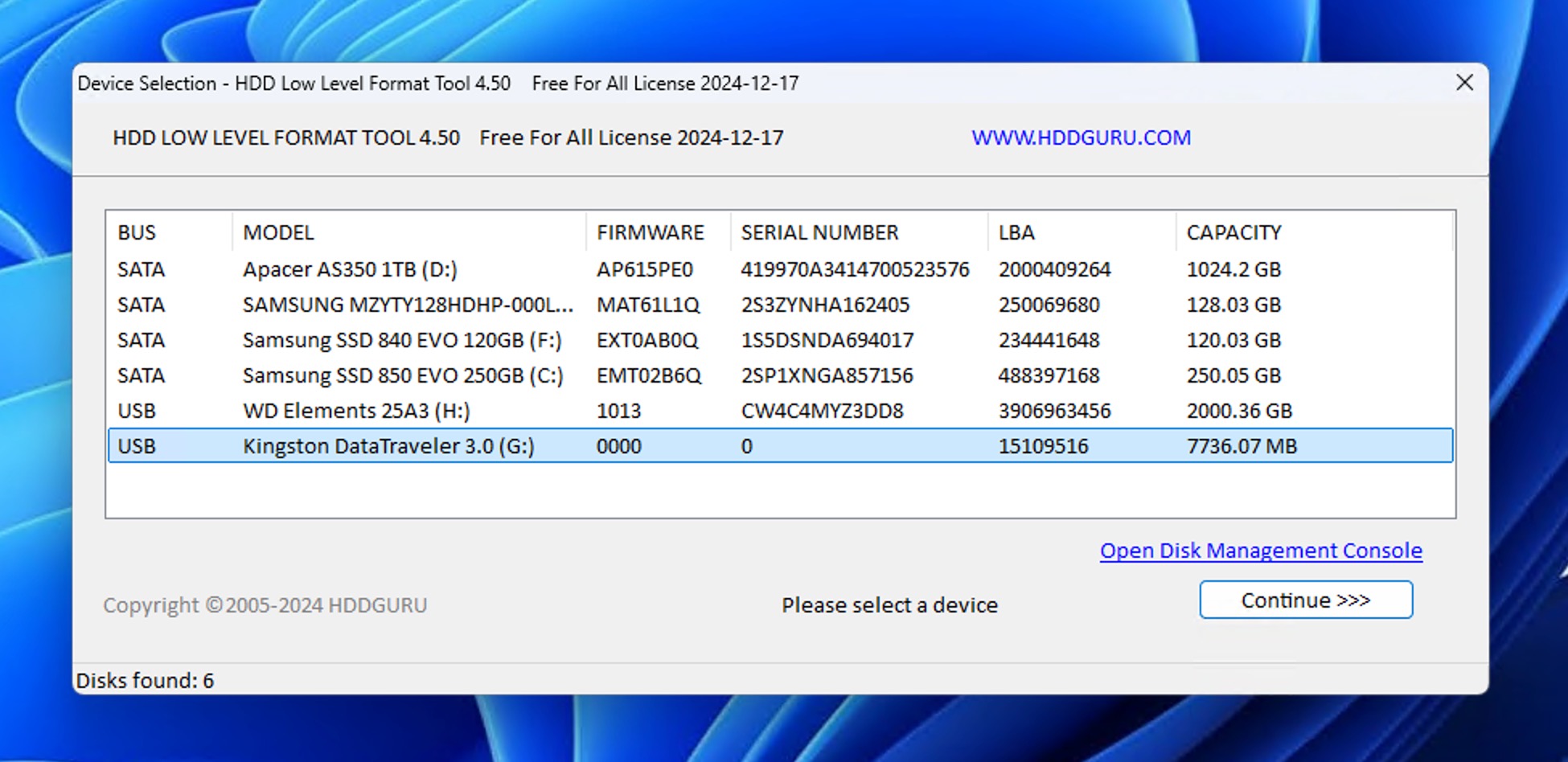

1. Install and run HDD LLF Low Level Format Tool with administrator rights.
2. Select your SD card from the list of detected devices (double-check you’ve selected the correct drive!)
3. Click continue and then initialize the low-level format process by clicking the Format this device button.

Low-level formatting can sometimes recover SD cards that appear completely dead, but it can’t perform miracles. If your SD card has exceeded its write endurance limit, even low-level formatting won’t resurrect it, and you should buy a new one instead.

Way 10. Nothing Worked? Use SD Card Data Recovery Center to Restore Lost Files

Have you tried all the solutions described so far in this article and found no success with any of them? Then, it’s probably the right time for you to take your SD card to a data recovery center and let professionals restore all lost files for you.

When selecting a data recovery center, look for the following:

• Clean rooms and professional equipment: There are many people online who offer data recovery services but lack the necessary equipment and expertise. Even though they might charge lower prices than professionals, the extra risk is almost never worth the discount.
• Recovery guarantee: Avoid data recovery centers that charge money even for failed data recovery attempts. True professionals don’t charge their customers for jobs they don’t finish successfully.
• Positive reviews: Always read online reviews when selecting a data recovery center. If you stumble upon a data recovery center with a suspiciously high number of negative reviews, we recommend you avoid it unless you’re ready to write your own negative review in the future.

One data recovery service that meets these criteria is CleverFiles Data Recovery Center, whose offline data recovery services are provided by ACE Data Group, one of the most respected players in the data recovery industry.

Tips to Protect Your SD Card from Data Loss

Even though we’ve described several different ways to fix corrupted SD cards and recover data from them, the unfortunate reality is that not all cases of data loss have a happy ending. That’s why it’s so important to protect your SD card from data loss by adhering to the following best practices:

• Always safely eject your SD card: It’s true that many SD card users have been improperly removing their storage devices for ages without suffering any negative consequences. However, there are also people like this Redditor, who have lost access to all data due to improper SD card removal. Unless you’re okay with data loss, then you should always take the few extra seconds it takes to use the eject function in your operating system (e.g., right-click and select “Eject” on Windows, or drag to the trash on macOS).
• Avoid exposure to extreme conditions: SanDisk and other manufacturers have extensively tested their SD and microSD cards to withstand harsh environments, but even these cards have specific tolerances. According to SanDisk’s official specifications, their cards can operate in temperatures from -13°F (-25°C) to 185°F (85°C) for up to 100 cycles (equivalent to 28 hours). They’re designed to withstand up to 72 hours in 1m of fresh or salt water (IEC 529 IPX7 rated), up to 500G of shock, drops from heights up to 5 meters (16.4 feet), and even exposure to X-rays and magnetic fields (up to 5000 Gauss). If you live somewhere where it, for example, gets very cold, then you should get a tough SD card like the Kingston Industrial series, whose operating temperature is between -40°C and 85°C.
• Minimize sudden loss of power: It’s never good for the integrity of your SD card file system (and the SD card itself) when power suddenly stops flowing while data is being written to the flash memory chips. When this happens over and over again, corruption becomes virtually inevitable. For this X user, the consequence was a Raspberry Pi that refused to boot, but it could just as well be the loss of precious family videos or pictures or business documents.
• Choose reputable brands: Opt for trusted brands like SanDisk, Kingston, and Lexar to minimize failure risks, as no-name brands have higher failure rates due to using lower-quality flash memory chips. What’s more, no-name SD cards also often advertise fake speeds and storage capacities, both of which further increase the risk of corruption and data loss. If you absolutely must use a no-name SD card, then at least verify it before use.
• Don’t ignore SD card error messages: If your card suddenly appears write-protected despite the physical switch being in the correct position, this often indicates file system corruption or controller failure. This is the moment to back up your data immediately, as detailed in our article on handling write-protected SD cards.
• Beware of static electricity: Static discharge can instantly corrupt or completely wipe an SD card without warning. As one DPReview forum user documented: “A static electricity charge seems to have wiped out my SD card… I had a small static electricity charge (not an uncommon experience in Canada in winter). Now, the computer will not recognize the card and the camera no longer recognizes it either – gives an ‘ERR’ code.” This photographer lost 250 irreplaceable photos from a brand new 64GB SanDisk Extreme Pro card due to a simple static discharge that most wouldn’t think twice about. This risk increases dramatically in dry winter conditions or when walking on carpeted surfaces. Before handling your SD card, touch a grounded metal object first, and consider investing in an anti-static wrist strap if you regularly work with memory cards in dry environments.
• Don’t use a faulty memory card reader: When I was younger, I had an SD card reader that had some manufacturing defect that made it extremely difficult to insert cards properly. Instead of replacing it, I kept forcing my SD cards in with increasing pressure until one day, I physically damaged the card’s contacts and connector pins. Not only did I lose all the data on that card, but the physical damage was irreparable. Card readers should accept SD cards with minimal resistance – if you find yourself having to apply force, stop immediately and replace the reader. A quality card reader costs far less than the data you might lose from a damaged card.
• Understand write endurance limitations: All SD cards have a finite lifespan based on their underlying NAND technology. According to Kingston Technology, different types of NAND flash have dramatically different endurance levels: SLC (Single-Level Cell) can handle approximately 100,000 Program-Erase cycles, MLC (Multi-Level Cell) about 10,000 cycles, and TLC (Triple-Level Cell) only around 3,000 cycles. Most consumer SD cards use TLC or QLC NAND due to cost efficiency, meaning they’ll begin to fail after a few thousand complete rewrites. For photographers and videographers who frequently delete and record new content, this can translate to just 1-2 years of heavy professional use.

With these simple tips, you can prolong the lifespan of your SD card and protect it from data loss.

Conclusion

If this guide felt like a lot, here’s the short version:

• Is your SD card detected by your PC, and do you have important data on it? Run data recovery software like Disk Drill first, then apply the appropriate fix from this guide. If you’ve already recovered everything you need, you can skip straight to formatting the card and call it a day.
• Is your SD card not detected at all, and you have important data on it? Try the basic recognition checks (different ports, readers, devices). If nothing works, a professional data recovery center is your best bet.

For everything else, start with the simple checks at the top of the list and work your way down until something clicks.

And one last thing. Sometimes it’s easier and safer to just replace the SD card rather than keep trying to fix it. This is especially true if the card has reached the end of its life cycle. SD cards don’t last forever, and fighting a dying card isn’t always worth the effort when a new one costs relatively little.
